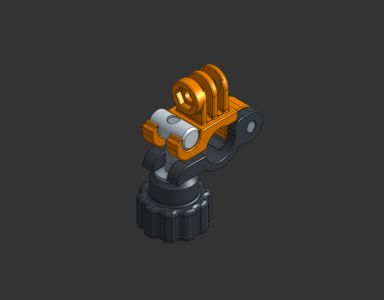

Compact Quick-Release Tube Clamp for Modular Mounting System

Compact Quick-Release Tube Clamp for Modular Mounting System

by YourRobotOverlord · Printables

Do you have the file? Print it on our printer

The licence of the model (CC BY (attribution)) allows commercial use too. Download the file at the source and upload it to us. We note the author and the source on the order for you.

Upload the file and print
Licence
CC BY (attribution)
Largest side
about 85 mm
Printing estimate
about 28 g of filament, 2 h 36 min
Price with us
from €5.70 (PLA, 1 pc)The exact price comes from the calculation once the file is uploaded.

About the model

This clamp is designed to mount Modular Mounting System (MMS) components to a 16mm tube/pipe/pole. If you need other sizes, you can use the linked OnShape document as a starting point to create them. This is a more compact version of my other quick-release MMS tube clamp. This clamp uses my anti-slip MMS tabs, since they are completely backward-compatible work the original tabs. Going forward, all my MMS components will use the anit-slip tabs. The hinge pin is designed for M5 x 20mm steel pins which are easy to find on Amazon, or you can use an M5-0.80 x 40mm bolt and nylon locking nut. The clamping hardware used is a M6 bolt with a washer and a cross dowel nut, available from Amazon. The OnShape document also includes a configuration for 1/4-20 hardware available from Home Depot. I've also included a compatible knob for convenience. GoPro compatible. Configurable OnShape model: Quick-Release Tube Clamp - Compact Version Check out my Configurable Bolt Knob to create knobs for this and other projects!
