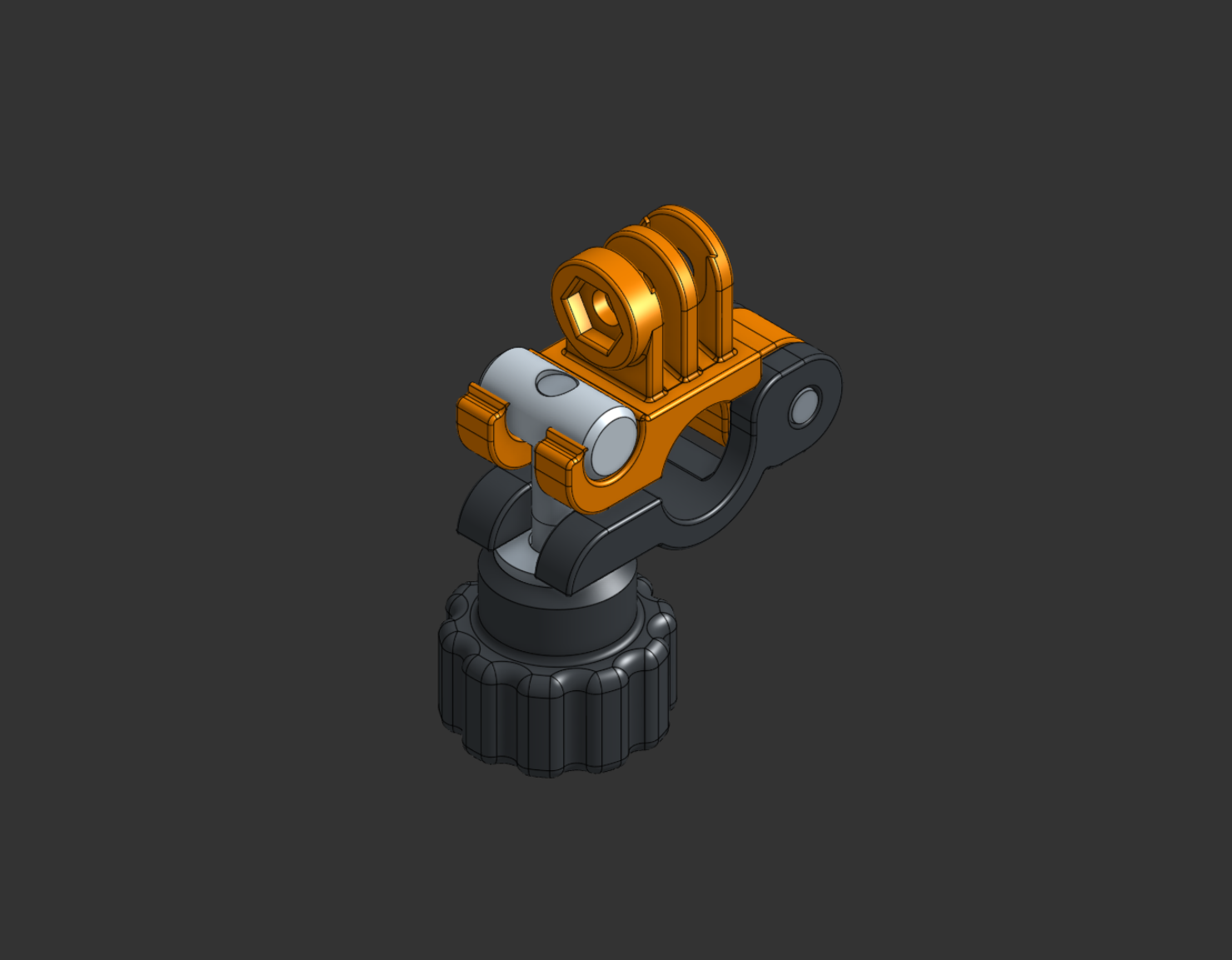

Compact Quick-Release Tube Clamp for Modular Mounting System

Compact Quick-Release Tube Clamp for Modular Mounting System

autor YourRobotOverlord · Printables

Máte soubor? Vytiskněte ho na naší tiskárně

Licence modelu (CC BY (s uvedením autora)) dovoluje i komerční použití. Stáhněte si soubor u zdroje a nahrajte ho k nám. Autora a zdroj uvedeme u objednávky za vás.

Nahrát soubor a vytisknout
Licence
CC BY (s uvedením autora)
Největší rozměr
asi 85 mm
Odhad tisku
asi 28 g filamentu, 2 h 36 min
Cena u nás
od 142 Kč (PLA, 1 ks)Přesnou cenu spočítá kalkulace po nahrání souboru.

O modelu

This clamp is designed to mount Modular Mounting System (MMS) components to a 16mm tube/pipe/pole. If you need other sizes, you can use the linked OnShape document as a starting point to create them. This is a more compact version of my other quick-release MMS tube clamp. This clamp uses my anti-slip MMS tabs, since they are completely backward-compatible work the original tabs. Going forward, all my MMS components will use the anit-slip tabs. The hinge pin is designed for M5 x 20mm steel pins which are easy to find on Amazon, or you can use an M5-0.80 x 40mm bolt and nylon locking nut. The clamping hardware used is a M6 bolt with a washer and a cross dowel nut, available from Amazon. The OnShape document also includes a configuration for 1/4-20 hardware available from Home Depot. I've also included a compatible knob for convenience. GoPro compatible. Configurable OnShape model: Quick-Release Tube Clamp - Compact Version Check out my Configurable Bolt Knob to create knobs for this and other projects!
