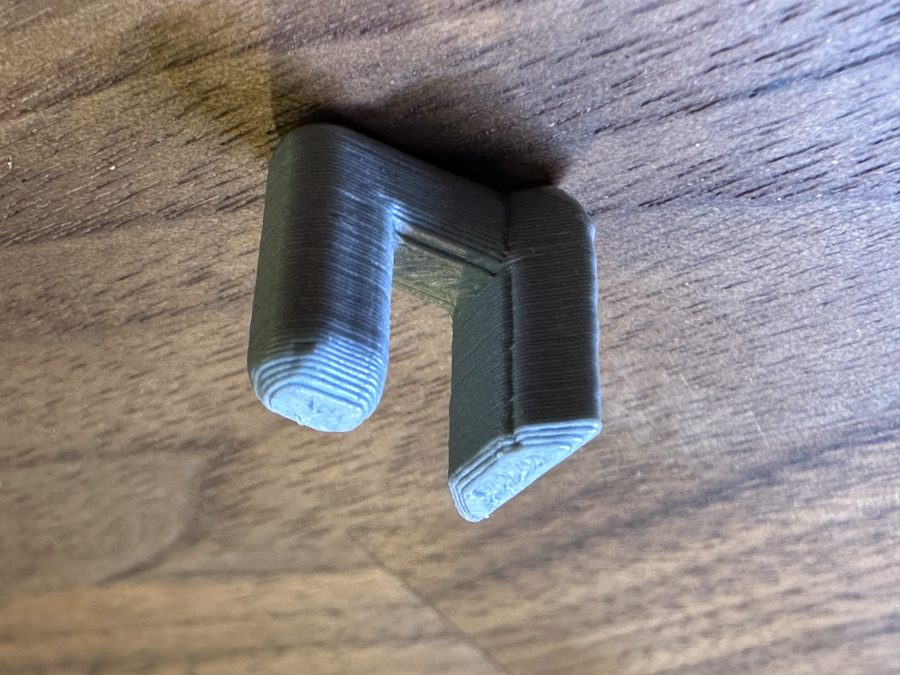

Skadis Ultimount: Connector/Hook

About the model

The Ultimount is a low-profile, invisible and easy-to-print (zero supports needed) mounting hook solution for the Ikea Skadis. The hooks and mounts have been designed to ensure no supports are needed to print either the hook, or the mounts when printed vertically (how most holders will be printed). No tools are needed for their construction or use, and the hooks are invisible when in use. They have a locking mechanism that gives a satisfying ‘click’ when locked in position, and do not come loose while in use. They are, however, simple to remove by pushing down on the hook (the suggested print orientation makes the hooks very strong in the vertical direction). Using There are a range of already created models that use the Ultimount connector, including: • iFixit Mako Screwdriver Mount • 3x Glue bottle holder • Deburring Tool Holder • Customizable bottle (and optional cloth) holder • Configurable Filament Spool Holder • Mount for the V01 Mini Vacuum • Bambu Lab X1/X1C Hotend Holder Also included are PDF dimensions for creating your own models that will be compatible with the connector. They are very low profile, and the only significant requirement is that the back of the holder where the hooks are added is at least 4mm thick (5mm preferable). Credits The Ultimount hook is based on the Dovetail Hook from Tiggr, and updated to provide more rigidity and an easier addition/removal. Note for Open Sourcing 3D Printed models: If providing 3D models under an Open licence, please be genuinely #OpenSource, release your source files with your STLs/3MFs and make it easier for others to collaborate. Boost MeIf you found this model helpful, please consider giving it a boost. Your support helps me to create more models.
