PC4 Connector Clip

PC4 Connector Clip

MakerWorld

This model cannot be printed on matplace

Its licence (personal use only) does not allow printing to order. You can download the file at the source and print it yourself.

models to print
Licence
personal use only

About the model

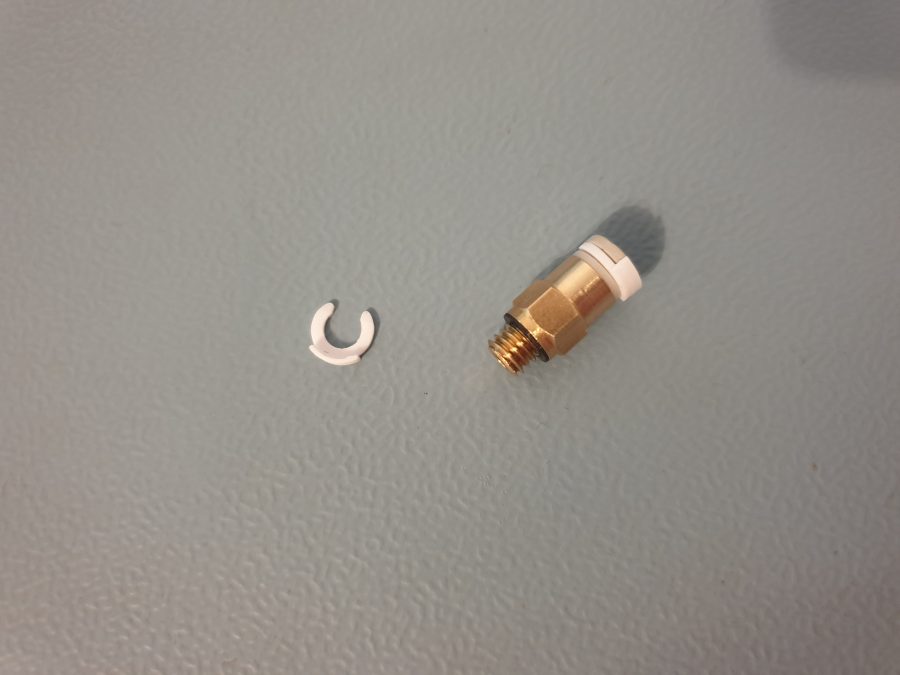

Connector clip to prevent your PTFE tube from slipping out of a PC4 pneumatic fitting, printed with a 0,2mm nozzle on a X1C, default profile except lowered the layer height to 0,05mm. They are so small its crazy fast anyways, might as well get the best details. I print 10 of them in 10 minutes on my X1C. Fits a lot of different PC4 pneumatic fittings, m5, m6, m8, m10, it doesn't matter. What does matter is the body of the fitting which unfortunately doesn't have a standard. If you fitting body resembles mine in the picture(its an m6 version) its a good chance it will fit. Its a really quick print so print one first and make sure it fits your style before printing a handfull.
