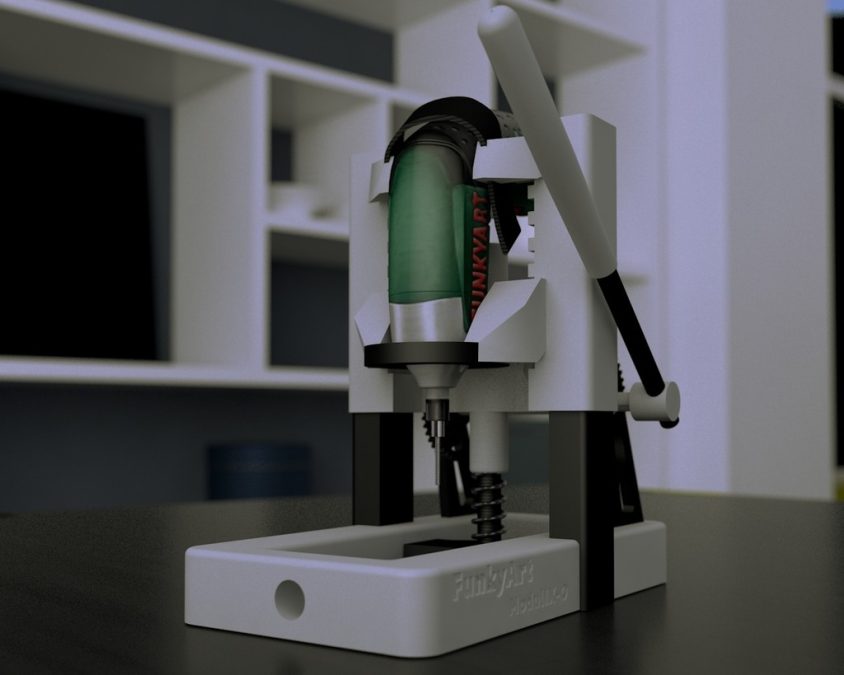

ModulIX-O - Universal Micro Drill press - Bosch IXO, Dremel, Makita,. (Mini-Standbohrer)

About the model

ModulIX-O is a tiny but solid and complete screw less Drill-press. I was looking for a smart solution to make precise holes in small parts. So I decided to do this one. I wanted a solution that don't need to use screws or any other shopping parts. I use an IXO and a Dremel, so one of my goals was that it should fit both ^^ It is completely modular, to be flexible for new devices too. A vice will be added soon. See it in Action here: http://www2.pic-upload.de/img/29391162/output_oOBSxI.gif It works, but iam still working on it. If you have issues, feel free to message me, i will try to fix it. All you need is a good calibrated Printer and maybe 3 compression springs. Features: • Auto Switch on/off (needs 1 compresion spring) • Auto lift up (needs 2 compression springs) • Screw less (& all parts printed, except springs) • Modular ( highly customizable ) greetz Print Settings Rafts: Doesn't Matter Supports: Yes Resolution: 0.1 - 0.3 mm Infill: min. 50% + Notes: The "Y Carrier" is tricky to print, it's the most important part. Be sure that it gets printed clean and accurate! Maybe it needs a little to be filed inside. The Base parts should be glued together for better stability. I recommend to print all parts with a really high infill level. Auto Lift-Up & Auto on: Depending on your spring length, you should cut the Tubes to fit your springs, Post-Printing Custom Section Category: Art Tools
