Infill Display

About the model

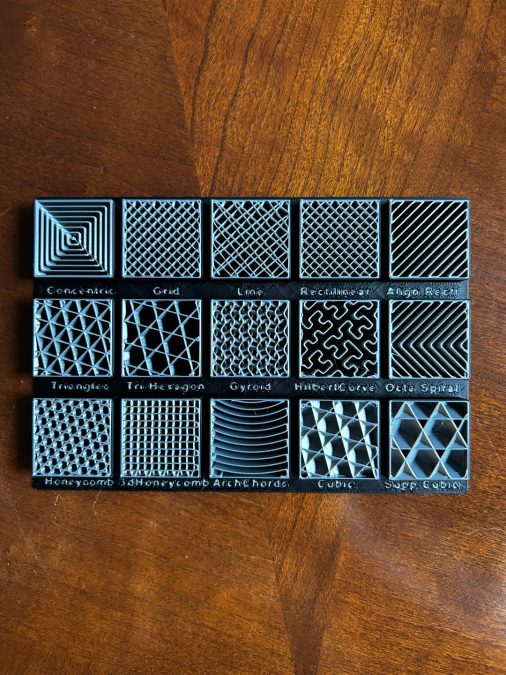

Update 10/26: Updated models available. There are profiles for multicolor and single color. The biggest change is embossed text which will look much better when printed. Read profile details for more info. I strongly suggest you print the updated model. Put on display infill patterns! Looks cool too says my wife! Check out v2 here! I wanted to display infill options so that I can more easily visualize and feel the strength. A big reason for making this was to show my friend who only used cubic, I wanted to show him he had a plethora of options. Blocks are 30x30x8.6. Since the first outer wall is a different color from the infill and there's a small gap, the infill is 29.1x29.1. I originally wanted it to be only infill with no outer wall but I was having difficulty and I like the way it came out like this so I didn't try to tweak anymore. You'll see in the 3mf for the modifiers.. • Wall loops - 0 • Top shell layers - 0 • Sparse infill density - 15%-20% • Sparse infill pattern - different for each block I had to leave a tiny gap in between the outer wall that surrounds the infill blocks so that I was able to paint them. Total model size: 133x166.8x10 Note: Infill patterns missing are adaptive cubic and lightning*. 1. because adaptive cubic can't really be shown with this 2. lightning infill I believe is (usually) the least practical infill 3. I wanted it wanted to be symmetrical. Also, Octagram Spiral and Archimedean Chords aren't really shown properly since they aren't in the center of the model**. *The updated models contain lightning infill. It replaced Support Cubic since it looks too similar to Cubic in this model. ** The updated model is rearranged to have Octagram Spiral in the center. *.f3d and STEP are included in case you'd like to add to them or remix in any way.* Unfortunately due to profile farmers starting to download, change negligible things in the model and uploading them as remixes(often without stating what was changed) I have taken down STEP and f3d files. If you would like these files you may message me and we can figure out a way for me to send them to you. Unfortunately the minority of people ruin it for everyone. I know this won't stop it but it's a deterrence. For now, I still have the license allowing remixes. I'll change the license if necessary. I apologize I had to do this.
