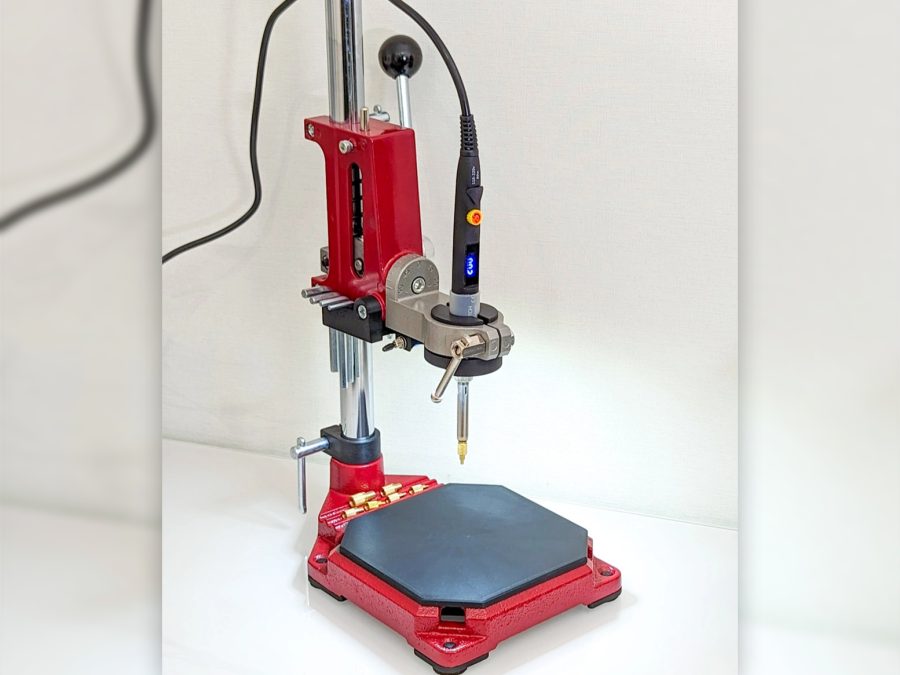

Heat Set Insert Press for Paulimot Drill Strand

About the model

Heat Set Insert Press With this conversion kit, the Paulimot drill stand can very easily be converted into a melting helper for thread inserts. Never again crooked threads or missing hands. ;) The print can actually be made in all materials. The holder for the LED ring should rather be printed in a more temperature resistant material, because of the possible heat development. Almost all parts do not need supports (only the mounting block for the LED ring needs smaller supports). For the assembly of the table you need: • 4x - M4 thread insert • 4x - M4*16mm • 4x - M4 washer If you want to mount the LED ring or the Key holder, you also need a M6*10mm or M6*12mm screw. I have used the following parts: • Drill stand https://www.paulimot.de/Bohrstaender-mit-Arbeitstisch-43-mm • Soldering iron https://amzn.to/3Le78aj * • Soldering Tips https://amzn.to/3JwM1Pq * • Threaded inserts https://amzn.to/41ZSLfH * • Switch https://amzn.to/3mGOhKS * • LED Ring 50mm https://www.ebay.de/itm/274098656178?var=574196945905 For safety's sake, I mention that the assembly and use is of course at your own risk. Have fun with it! * = Amazon Affiliate Links
