Dyson Shop Vac Adapter (Customisable)

Dyson Shop Vac Adapter (Customisable)

MakerWorld

This model cannot be printed on matplace

Its licence (personal use only) does not allow printing to order. You can download the file at the source and print it yourself.

models to print
Licence
personal use only

About the model

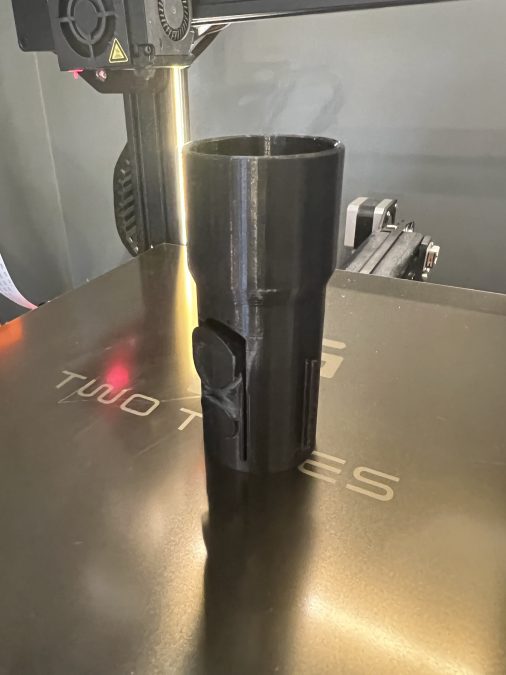

Designed as a print-in-one part for allowing a Dyson cordless vacuum to be used for dust extraction as a shop vac (e.g. as a lighter-weight alternative for extracting dust while sanding paintwork, etc.) or used to connect standard vacuum accessories. The STL contains an example adapter for a 35mm (outer diameter) shop vac attachment. However, the below Onshape link allows full and easy customisation (via parameters) of the adapter diameter/length for any other size: Customize in Onshape Print instructions • Supports Needed: None / Minimal • Support Suggestion: Only use supports from the build plate to avoid creating non-removable supports under the Dyson connector ‘buttons’. • Bed Plate Adhesion Needed: None • Print Orientation: From the bottom of the Dyson connector-end • Materials: PLA, PETG etc
