Dragon R1 - Open Source RC car

About the model

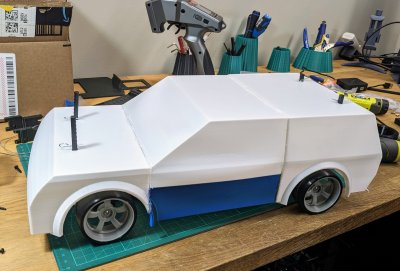

Features of this Open Source car: • Maximum 3D printed parts • Easy to source hardware • Simple Assembly • Easy maintenance and battery access • Dual wishbone suspension • Open differential • Low noise drive (using Blheli ESC) • Printable with a 200mm size printer Model is 1/12 scale; • length: 396mm • width: 164mm • height: 71mm Wiring Diagram: The assembly process is divided into 3 main parts: 1) Rear chassis • Rear axle • Differential • Rear Suspension 2) Front chassis • Steering mechanism • Front suspension 3) Body assembly • Base chassis • Body Check out our Instructables Remix Collection: Dragon R1 & Remixes Update notes: The design has been updated now, It is slightly different from the one shown in video. Refer to the following photos for assembly. Join our Discord 3D View: Fusion 360 3D View Notes: • Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura. • The 3mf files were generated with Cura Slicer. STLs also provided for other slicers. • The body requires tree supports when using "touch build plate only" support option. Please check the print preview before printing. It is better to print the two parts separately. Print settings: Cura 3MF file
