CO2 Laser Focus Length Tool

CO2 Laser Focus Length Tool

MakerWorld

This model cannot be printed on matplace

Its licence (personal use only) does not allow printing to order. You can download the file at the source and print it yourself.

models to print
Licence
personal use only

About the model

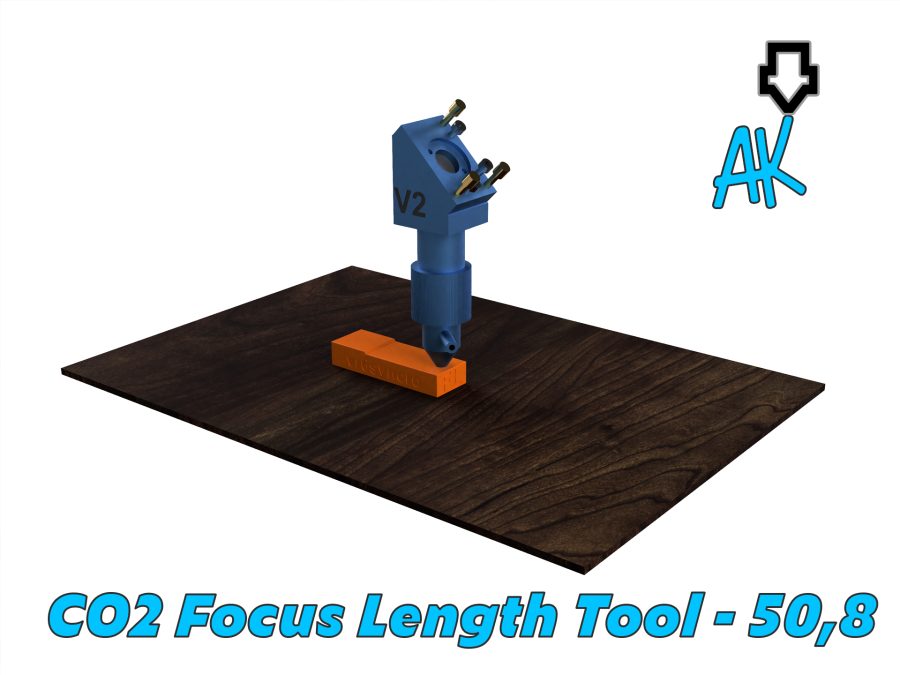

CO2 Laser Focus Lengh Tool This Model is for CO2 Laser with a total focus length of 50,8mm and a distance from the toolhead to laser surface of 10,2mm. This is used by the Cloudray Laser Heads Typ K 4060 V1 and V2. Use FL side for the right focus lenght. Use G side to get a 1mm off focus for engraving. Print informations: Pause at Layer 14 to insert a 10x2 Magnet if you want to. 3 Walls 15% Infill If you need help, have questions or want to collaborate, please feel free to join my discord server: https://discord.vr6syncro.de If you want to support me or thank me you can do it here Thanks, Alex
