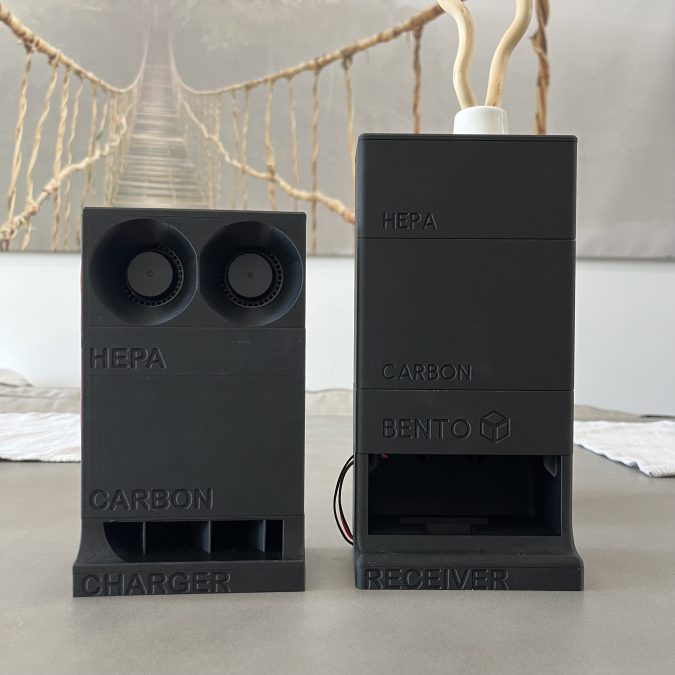

Wireless powered Bambu Lab Bento Box Air Purifier for X1C / P1P

O modelu

UPDATES:   • April 7th: Added support for 24V 4020 fans on V2 design (should also work for V1 designs). If using 24V fans, trim the boost converter output to 24.0 instead of 12.0   • April 7th: Added “wireless test jig” to help with assembled coil testing before installing the enclosure. Simply mount the transmitter box into the allotted space and align the receiver box on the debossed corner. The receiver coil should be over the non-perforated region of the base.   WIRELESS POWER: The major change here is that I added an wireless receiver module to the bottom of the assembly coupled with a wireless transmitter module for installation under the unit. Alignment between the receiver and transmitter was determined via a 3D scan of the X1C and should be as close to perfect as you can get in X, Y, and Z (z-distance matters as much as X and Y).  Everything is magnet or friction fit installable and requires no modification to the printer housing. Power is supplied via an external micro-USB port and the instructions provide parts for a completely solder-free assembly.   V2 BENTO BOX Printed Parts Fan Duct 6x3 magnets or Fan Duct 4x2 magnets Receiver Box 6x3 magnets or Receiver Box 4x2 magnets Wireless Transmitter Box Wireless Transmitter Cover (OPTIONAL) Wireless Test Jig (From Bento Box Creator) Cover_voronoi or Cover_hemp Hepa Carbon Fan case CMag Case 01 CMag Case 02 4x net_infill BentoBox20 User Guide   Materials 12V 4020 Fans or 24V 4020 Fans Wireless Receiver Wireless Transmitter Booster Converter 3-35V with LED Voltmeter (alternate: source 1, source 2) Wire Connector (for solder-free option) USB Charger (minimum 2A) Flat micro-USB to USB A cable 6mmx3mm disc magnets or 4mmx2mm disc magnets (depending on version) Hepa Filter Activated Carbon Pellets  and alternative vendor (MUST BE ACID-FREE) Brass inserts (M3xOD5mmxL4mm)   INSTRUCTIONS: • Assemble Wireless Receiver 1) Use the wire crimper, or a soldering iron, to connect the receiver  1) Following V
