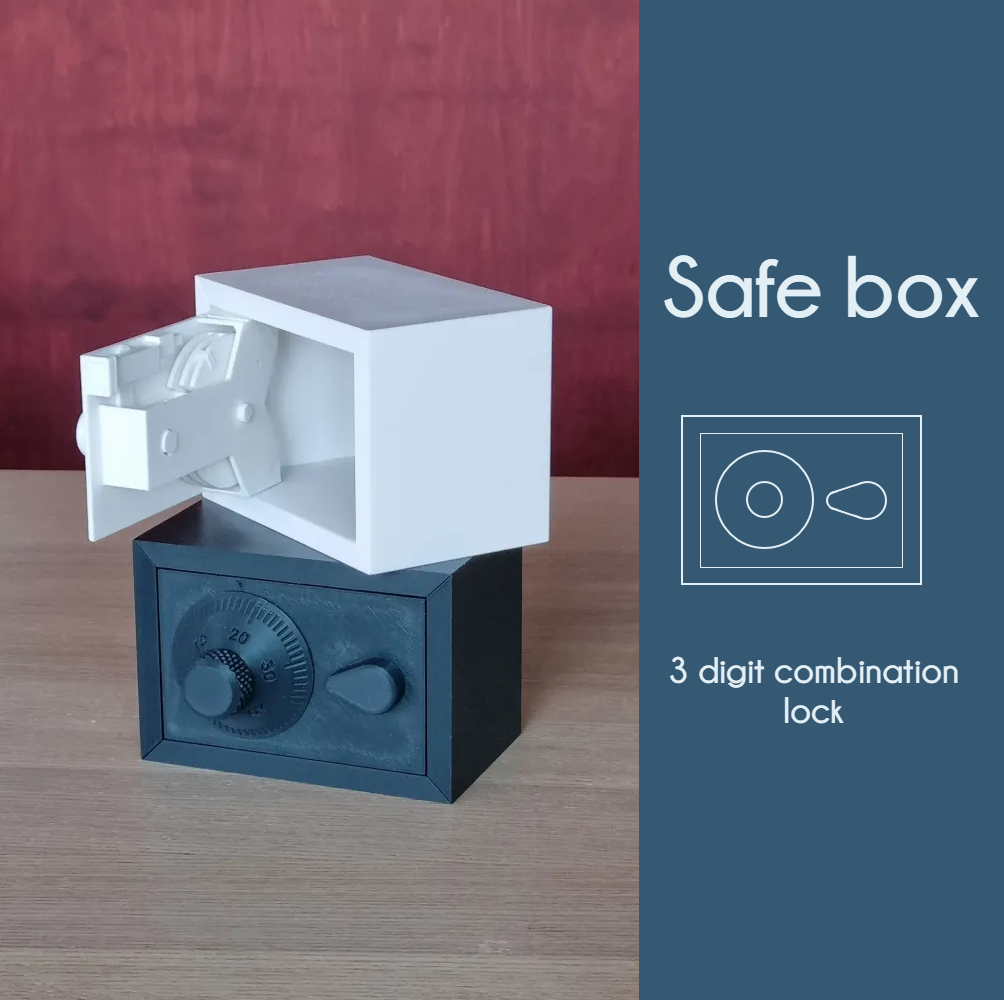

Safe box - 3 digit combination

Safe box - 3 digit combination

autor Hugo · Printables

Vytiskněte si ho pro sebe

Licence (CC BY-NC (jen nekomerčně)) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

Nahrát soubor a vytisknout
Licence
CC BY-NC (jen nekomerčně)
Největší rozměr
asi 150 mm
Odhad tisku
asi 285 g filamentu, 11 h 20 min
Cena u nás
od 712 Kč (PLA, 1 ks)Přesnou cenu spočítá kalkulace po nahrání souboru.

O modelu

If you need to secure your precious belongings in a safe place, you found what you were looking for. This safe is secured by a 3 digit combination to prevent anyone from opening it (unless they have a hammer or a heat gun, I mean it's just plastic at the end)  This is kind of a long build but it is perfect to learn how a combination safe works.  Printing instructions : Start by printing all the parts I provide, I used PLA with 0.2mm layer height and 20% infill for everything and non support. For some part the printing orientation is quite important for the strength, so this is the orientation for the parts you may have a doubt with : Both axle are printed on the side for better strength : The lever is printed like this : Both pivots are printed on the side : The pins are printed like this : The latch is printed like this : All the oher parts orientations should be pretty obvious. Building instructions : • Glue the dial with the disk_1 through the front_plate : • Add the axle_1, the 2 remaining disks and the spacers, no glue required : • Glue the pins to each disk. On disk_1 and disk_3 the longer part should be facing towards the centre, and the centre pin is the biggest :   • Glue the knob to the axle_2 through the front plate, and then place the lever on the axle : • Close the door assembly by gluing the back_plate to the front_plate : • Place the latch over the lever's arm and secure it by gluing the 2 latch guides in their dedicated spot : After this step, the assembly should look like this : At this point you can figure out the combination by following these steps : • Turn the dial on the lock clockwise three times. This connects the 3 disks together, so they now turn with the dial. • Continue to turn the dial clockwise until the notch on the disk_3 is lined up with the lever. Stop and look at the dial to write down the first number of the combination. • Turn the dial counterclockwise for 1 full turn past the first number to engage the mid
