Flipper Zero Buttons
MakerWorld · ZR_CrackiiN
autor HardwareLab · Printables
Licence (CC BY-NC-ND (jen nekomerčně, bez úprav)) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

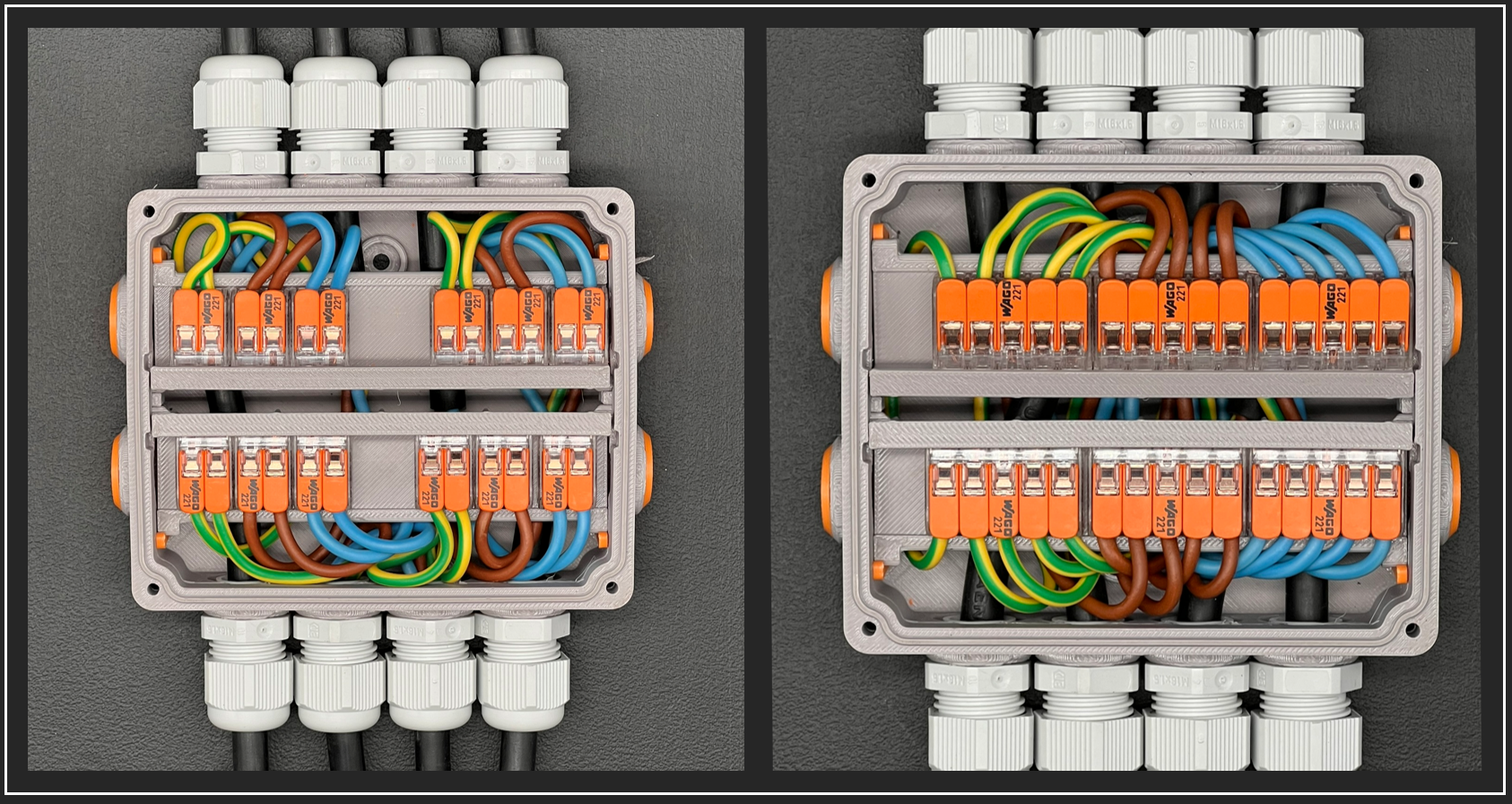

Nahrát soubor a vytisknoutThis innovative junction box is fully compatible with the WAGO 221 series and supports all connector models, including the 221-412, 221-413, and 221-415. Designed for maximum flexibility, the rail-based approach allows you to mix and match different WAGO connector sizes to create the wiring configuration you need. CHECK ALL CONFIGURATIONS HERE: https://www.printables.com/model/1169166-multiconfiguration-junction-box Enhanced Design Features • Swivel Rail Mount: The connector rail is mounted on a swivel joint located on the top part of the box, enabling convenient feed-through connections. This design makes it easier to access and connect cables while keeping all connections clearly visible. Different connector combinations: Elegant Lid: The Elegant Lid is compatible exclusively with 3D-printed glands and is designed for indoor use. It offers a clean and polished look, making it ideal for situations where appearance matters most. Check the information below for details on how to use the Elegant Lid effectively. • Cable Management: All cables are neatly concealed beneath the rail, ensuring a clean and organized appearance. • Secure Locking Mechanism: The rail is locked into position using a latching pin. Additionally, the top lid ensures the WAGO connectors remain securely closed by holding the lever in place, preventing unintentional opening. Built for Versatility and Durability • M16 x 1.5 Thread Compatibility: The box is equipped with a standard M16 x 1.5 thread, allowing the use of standard M16 cable glands for applications in harsher environments. • Water Protection: A precisely engineered seal groove prevents water ingress, providing additional protection in challenging conditions. Recommended Material for Safety Given the presence of electrical currents, it is strongly recommended to use UL-certified, self-extinguishing PETG filament for 3D printing this junction box. This material is particularly suitable for housings and insulating
