Magnet Insertion Tool v2

Magnet Insertion Tool v2

autor EmGi · Printables

Vytiskněte si ho pro sebe

Licence (CC BY-NC (jen nekomerčně)) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

Nahrát soubor a vytisknout
Licence
CC BY-NC (jen nekomerčně)
Největší rozměr
asi 140 mm
Odhad tisku
asi 45 g filamentu, 3 h 5 min
Cena u nás
od 177 Kč (PLA, 1 ks)Přesnou cenu spočítá kalkulace po nahrání souboru.

O modelu

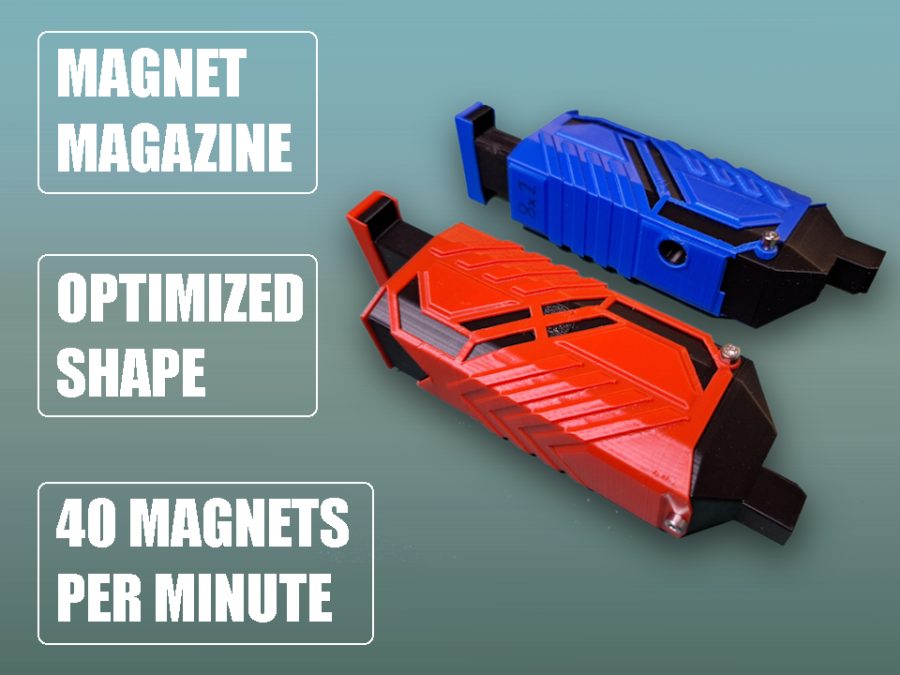

  UPDATE 24.09.2024 • 8x3mm Magnet Variant added (not tested by me as i dont have those magnets. These magnets may be too strong for this variant)   UPDATE 20.09.2024 • 6x3mm Magnet Variant added   INTRODUCTION v2 of my Magnet Insertion Tool, with • optimized Tip size • trigger suspension  • self reloading Magnet Magazine   PRINTING All parts are already in the correct orientation. “Tip” is the only part that requires Support Material. I printed everything in PLA. 0.2mm Layer height, 0.4mm Nozzle on a Anycubic kobra 2 Pro.   FILAMENT i used PLA+ from Elegoo but any other Pla should work as well PLA+ from Elegoo (reflink)   HARDWARE Magnet sizes currently tested and supported: • 5x1mm • 6x2mm • 8x2mm • 6x3mm • 8x3mm (not tested) Other Hardware you need: • 2x M3x6mm • 3x M3x10mm • Rubberband • 3x Magnets of selected size   ASSEMBLY   There is a PDF attached to the files with assembly instructions as well as some simple Assembly steps shown in the Video I reccomend printing 2 tools. 1 for each pole of the magnet. I printed one in Red and one in blue.   Support my work by becoming a PATREON or Buy me a Coffee
