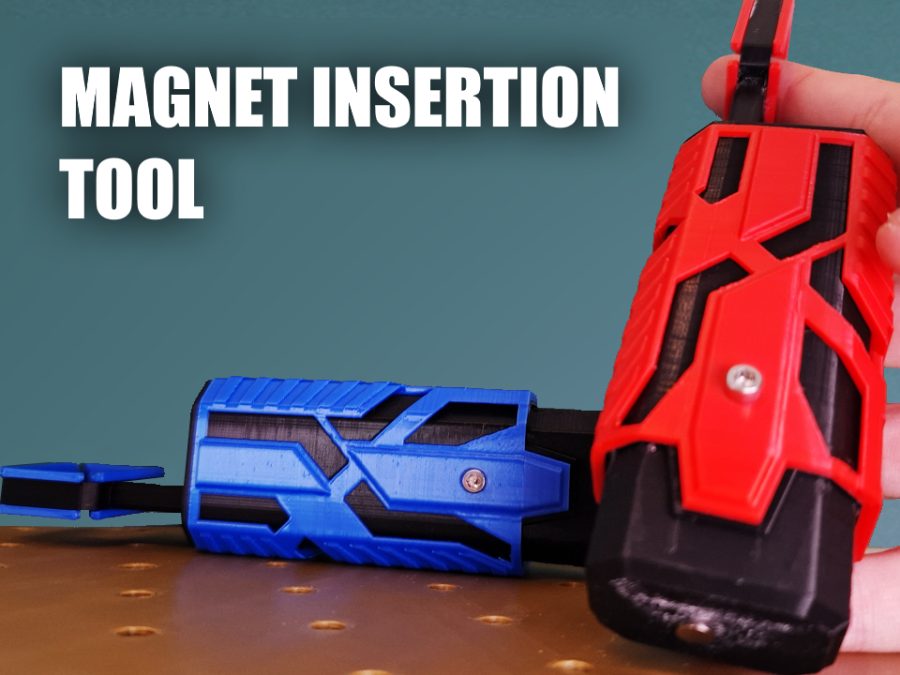

Magnet Insertion Tool v1

  UPDATELOG:   02.09.2024: 6x3mm Magnets are now supported.  • 6x2 Picker   24.08.2024: 8x2mm Magnets are now supported.  Tip got simplified to a blank bottom surface so it can be used for all magnet sizes • 8x2 Picker 20.08.2024: 6x2mm Magnets are now supported.  Parts changed for that variation.  • 6x2 Picker 19.08.2024: Uploaded raw .blend File. sadly i noticed that i cant export STEP files with blender so i cant upload the STEP files for now. i ordered 6x2mm Magnets so i can test a compatible version for that first before uploading.   INTRODUCTION If you ever had to insert Magnets into 3D Prints you probably know the struggle of  • inserting the tiny magnets into tiny holes • Inserting magnets the wrong way into the part • getting Superglue to your fingers i tried to solve all of those problems and this tool is the result. with the handle pulled out you can pick up magnets, with the handle pushed in you can drop them.  Magnet sizes currently tested and supported: • 5x1mm • 6x2mm • 8x2mm It basically works with every similar magnets. and with 5x1 internal magnets you can also pick up 8x2 magnets and so on.   Magnets i used: 5x1mm (reflink) 6x2mm (no longer available on amazon?) 8x2mm (no longer available on amazon?)   FILAMENT i used PLA+ from Elegoo but any other Pla should work as well PLA+ from Elegoo (reflink)   Other Hardware you need: • 2x M3x8mm Bolt   I reccomend printing 2 tools. 1 for each pole of the magnet. I printed one in Red and one in blue. For more infos check out the video and check out the assembly instructions attached to the files.   Support my work by becoming a PATREON or Buy me a Coffee
