Kingroon KP3S - X Belt Tensioner

Kingroon KP3S - X Belt Tensioner

MakerWorld

Vytiskněte si ho pro sebe

Licence (jen pro osobní použití) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

Nahrát soubor a vytisknout
Licence
jen pro osobní použití

O modelu

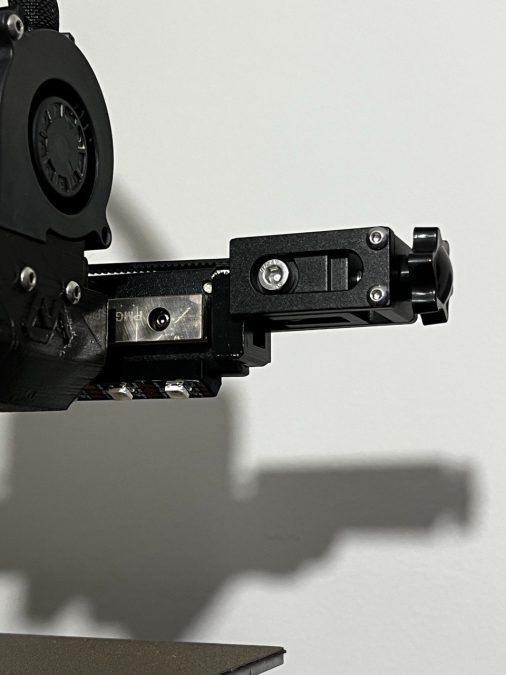

Adapter for a commercial aluminum tensioner for X-axis You can buy me a coffee with a donation. Me puedes invitar a un café haciendo una donación Click to danate Bill of materials: • 1 unit - Aluminum belt tensioner 2020 short version (includes the t-nut from step 3) • 620 mm - Gates GT2 synchronous belt • 1 unit - Screw ISO 7380 M4x22 or M4x20 Print parts • 1 unit - X_belt_tensioner.stl   Assembly instructions   1. Remove the pulley screw and reserve it for the next steps 2. Remove the pulley and washer   3. Assembly the belt tensioner with t-nut and screw of step 1   • 1 unit - Aluminum belt tensioner (include t-nut) • 1 unit - X_belt_tensioner.stl   Note: Do not tighten the screw   4. Put the assembly in the X axis and fix it with M4 screw   • 1 unit - Screw ISO 7380 M4x22 or M4x20   Note: If you have the mod of led bar you need remove the upper part in the place of tensioner     4. Put the new sychronous belt   • 620 mm - Gates GT2 synchronous belt
