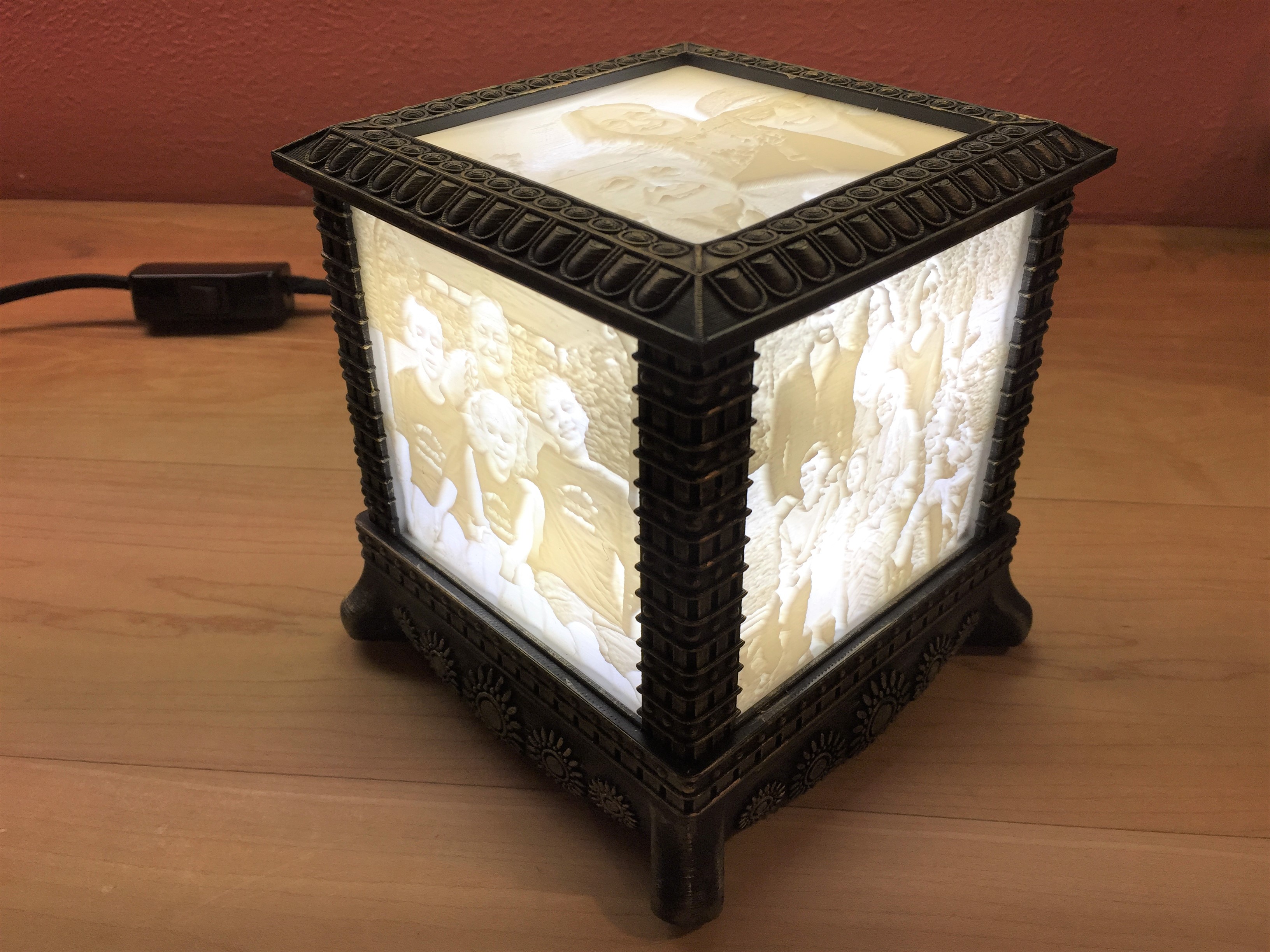

Gothic Lithophane Light

Gothic Lithophane Light

autor 3D Printing World · Printables

Vytiskněte si ho pro sebe

Licence (CC BY-NC (jen nekomerčně)) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

Nahrát soubor a vytisknout
Licence
CC BY-NC (jen nekomerčně)
Největší rozměr
asi 110 mm
Odhad tisku
asi 285 g filamentu, 10 h 20 min
Cena u nás
od 682 Kč (PLA, 1 ks)Přesnou cenu spočítá kalkulace po nahrání souboru.

O modelu

Gothic Lithophane Lamp I wanted to make my Mom a Litophane lamp for Christmas so I looked on thingiverse but none of them were just right so I design my own. I decided to go with a Gothic style design, something really easy to use the dry brush technique on. I designed this version to use components that can easily be purchased from Amazon. I have listed the required parts below and have provide detailed instructions on how to make your own custom Lithophane panels In the video. Print Instructions Unassociated tags: lithophane box, Lithophane lamp, lithophane lantern Category: Decor Print Instructions See the settings video for the instructions and settings required to make your own custom lithophane panels for this frame. Supports are not required for the base and the clamp but the top does require support for the center overhang. Paint I will create a video shortly highlighting how I painted and assembled it in more detail. You can subscribe to my youtube channel if you would like to receive a notification when it comes out. There are so much detail on the model to help hide the layer lines that I do not find it necessary to do any sanding. I did spray the frame first with a flat black Rustoleum because black filament is too shinny. After that I used the dry brush technique to add highlights to the high parts using metallic gold acrylic paint. Assembly After you have all the parts printed install the heat set thread inserts into the frame first. These will hold the bulb socket and the stain relief for the cord. One insert is used to hold the socket and two are used for the cord grip. The thread inserts are installed with a soldering iron and the tip linked below. You can get away with a standard cone shape soldering tip as well but the custom tips make it a little easier to get the insert in the hole straight. You can use a regular plastic cord but I think the rayon cloth covered cord looks a lot nicer. If you are installing the inline switch as well pu
