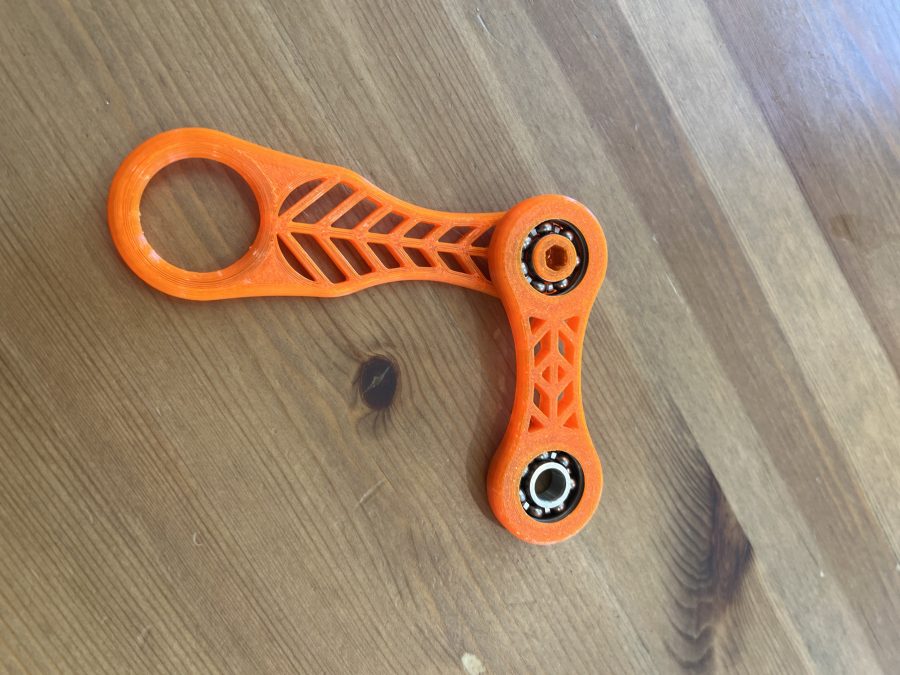

Nahrát soubor a vytisknoutChangelog: • 7/28/23 : Whoopsies! Discovered glitches.. pulled model parts and advised people to wait • 7/29/23 : Updated version to 2.6, because the previous “2.5” I made was badly borked :) • Fixed several kinks in the models and improved matters to make it easy to insert the screw cap with a M5 hex key. Changed recommended printing height to 0.16, fixed several model deficiencies. This should finally be ready to actually use. • Now includes a ready-to-use 3MF for OrcaSlicer with the modifiers in-place (optional) I think the 2.0 remix from @Cristobal5050 had the right idea, but it required stopping the print in the middle and inserting a bearing.. which is a bit of a pain and inevitably will lead to rage when i screw it up (at least for me !). Plus it requires changing GCODE manually (yuk!). Instead of screwing it up.. why not screw it in instead ! I thought that altering the design to have a threaded assembly would perhaps be a better way of accomplishing the intent of using a bearing here. Since I'm working from meshes here I only have 3MFs (meshes) to provide as any STEP would be really ugly. I grudgingly worked from a mesh-to-solid workflow and modified in some threads to hold the bearing in place. If you want to be sure it never unscrews you could add a touch of super-glue at the other side of the threads after assembly. Printing I printed in Prusament Transparent Orange PETG, which is good in this case because the slight bit of flex in PETG helps with seating the bearings in place. Print the two parts with threads at 0.16 layer height if you can in order to get the threads to work nicely. The "Mirrored Slinger" was originally directly cribbed from @Cristobal5050's remix. However I discovered this didn't sit flat on the bed nicely and led to an unfortunate print with a messy bottom. I've remixed this to sit flat on the bed in the improved part. I recommend the standard length SpinnerPart, but I also offer a longer version.. this may hit your fing
