Filament rack

Filament rack

MakerWorld

Vytiskněte si ho pro sebe

Licence (jen pro osobní použití) dovoluje jen nekomerční použití. Stáhněte si soubor u zdroje, nahrajte ho k nám a vytiskněte na pronajaté tiskárně pro vlastní potřebu, ne na prodej.

Nahrát soubor a vytisknout
Licence
jen pro osobní použití
Největší rozměr
asi 280 mm
Odhad tisku
asi 185 g filamentu, 7 h 0 min
Cena u nás
od 462 Kč (PLA, 1 ks)Přesnou cenu spočítá kalkulace po nahrání souboru.

O modelu

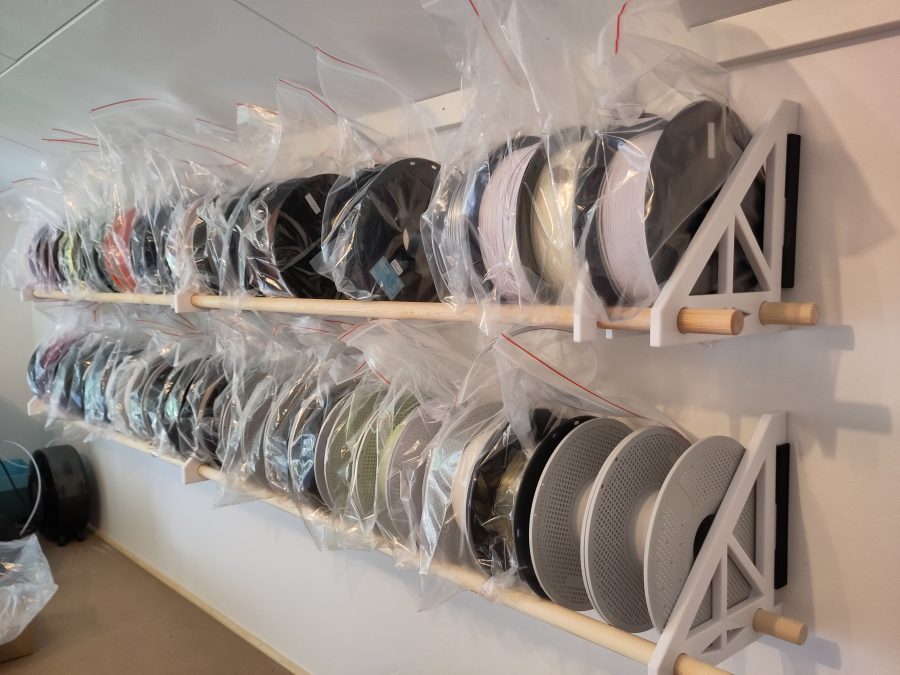

Rack to store your filament spools. The cleats are fitted with 4mm countersunk screws, 2x per cleat, the cleats are 20mm thick. In the image I attached the rack to a plasterboard so used countersunk m4x50mm bolts, secured in metal expansion plugs. 1 cleat per 1m, but depends on the rods and how sturdy your wall is. The racks are connected with 21mm wooden rod, was the easiest and cheapest for me to obtain, can easily be modified in the .f3d file if you got other rods. The rods can be fastened in the racks with 3x25mm countersunk wood screws. Printed the cleats in PA-CF and the racks with PETG, might be a bit overkill though. Depends on how you decide to set it all up! But probably want a lot of walls and a lot of infill.
