Bambu Lab X1 P1 Magnetic Rear Vent Adapter

O modelu

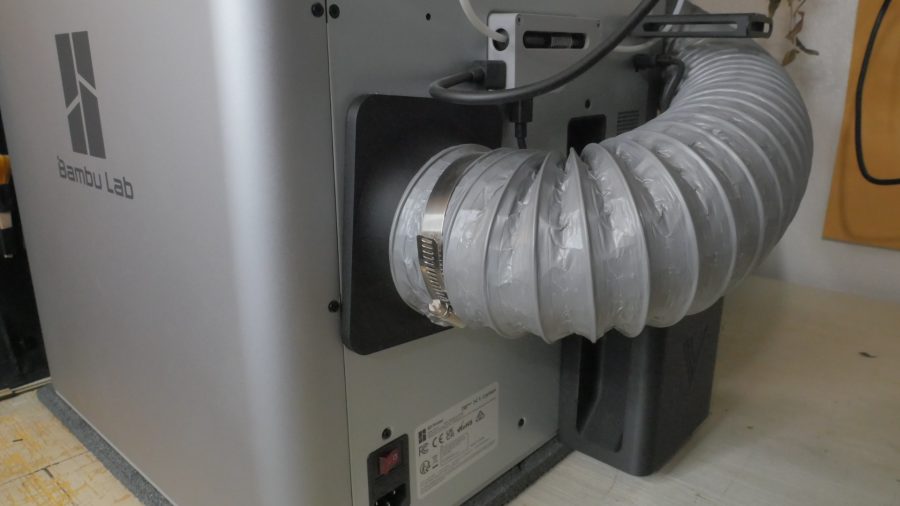

This magnetic adapter is for the Bambu Lab X1 or P1 Series printer.   The adapter allows you to attach a vent hose and pipe the fumes out of the room or the immediate area. I print with ASA and an air duct system does a great job of moving all the fumes outside.   This adapter fits a 3" air duct hose. This adapter also uses four (4) magnets (0.5 inch diameter, .010 thick). The mounting holes for the magnets are oversized (0.51 diameter) for an easy fit. Depending on you printing tolerance, you might need to super glue the magnets in place.   The magnets hold the vent adapter in place, but will slide around if moving the printer. Once your printer is in place, the vent will stay in place.   Filament - I used PLA+ or PLA Carbon Fiber Support - None Brim - 5 to 8mm Layer - 0.2mm 3mf file using Bambu Lab Studio (slicer)   UPDATE 2: The model was updated to use more common magnet size (10mm x 3mm) The new model is vent_magnetic_v2   You can find digital files for T-adapters and Y-adapters to use for your air duct system on our website www.v3precision.com. You can also find a finished adapter with the magnets installed.
